PlantStream Version 1.0.34 marks a significant step forward in plant design automation and interoperability.
This release introduces targeted capabilities designed to reduce manual engineering effort, improve layout compliance, and seamlessly connect PlantStream models to downstream platforms across the engineering ecosystem.
Equipment Spacing: Reduces layout rework and accelerates HAZOP-ready deliverables.
PCF File Export: Export industry-standard PCF files from PlantStream to CAESAR II, Plant3D / CADWorx / OpenPlant and ISOgen. One model — full end-to-end data continuity.
PlantStream → S3D Structure Export: Export structural data (columns, beams, braces, expansion slabs) from PlantStream directly to Smart 3D via SDNF.Along with these other new type of equipment & Structure elements are also added to PlantStream library.
With these enhancements, PlantStream Ver. 34 delivers a more integrated and efficient engineering workflow, enabling faster project execution, improved design quality.
● Eliminates manual spacing checks
● Reduces layout rework
● Improves design efficiency and compliance

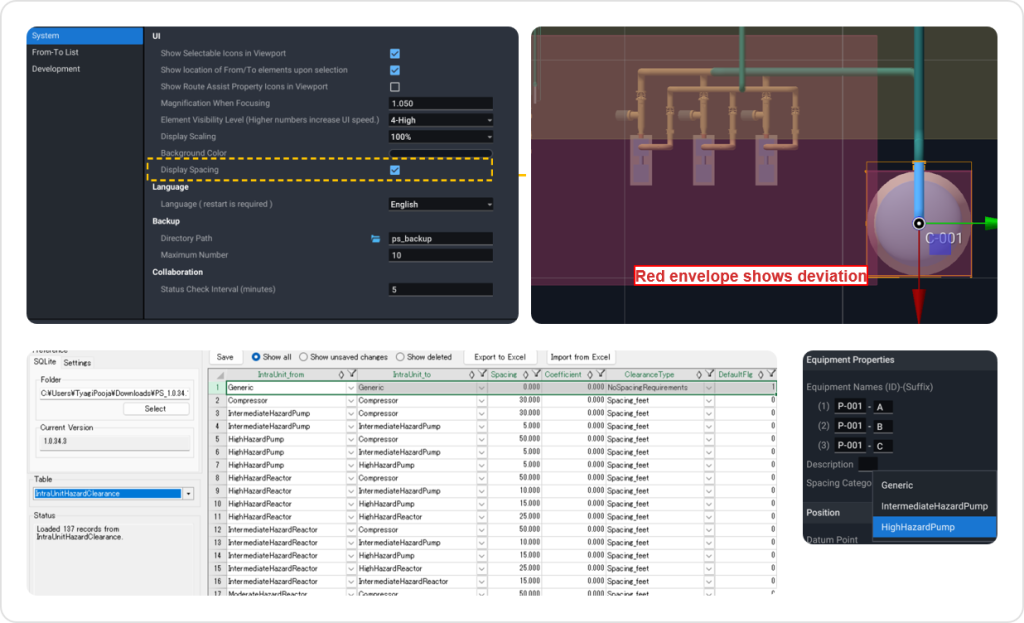

Define spacing categories and visually verify equipment clearances against safety and company standards directly in the 3D model. Quickly identify and correct spacing violations with customizable clearance requirements.

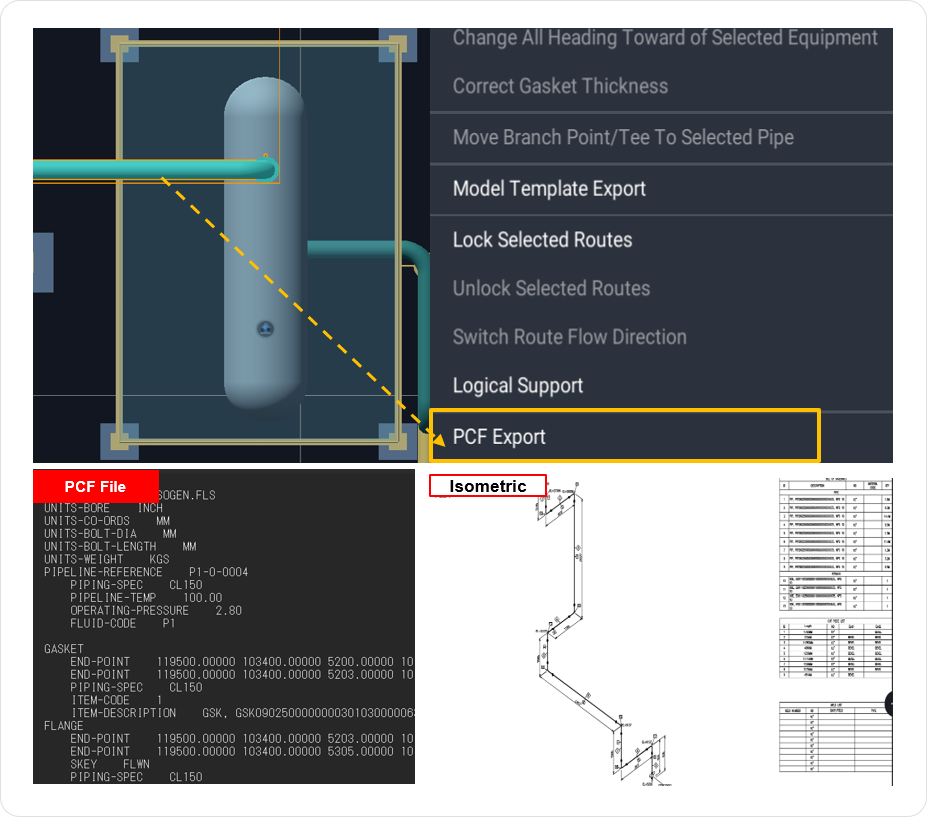

Export piping data in PCF format for integration with downstream engineering applications.
Currently validated for Isometric Drawing generation. Planned integrations include stress analysis (CAESAR II) and detailed engineering environments (Plant 3D / CADWorx / OpenPlant).
● Enables end-to-end data utilization from layout to isometric output
● Built for continuity across the full engineering workflow
● Streamlines structural model transfer
● Eliminates manual structure recreation
● Improves design consistency and efficiency

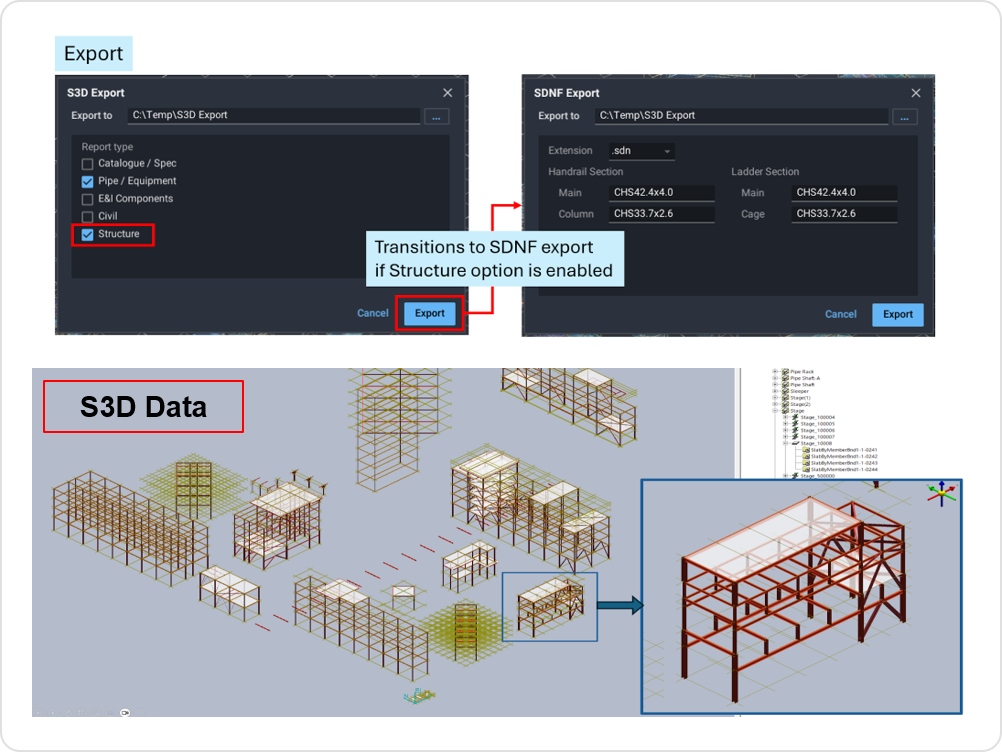

Export steel structure data from PlantStream to Smart 3D using SDNF format. Structural elements such as columns, beams, braces, slabs, and grid systems are automatically created during import.

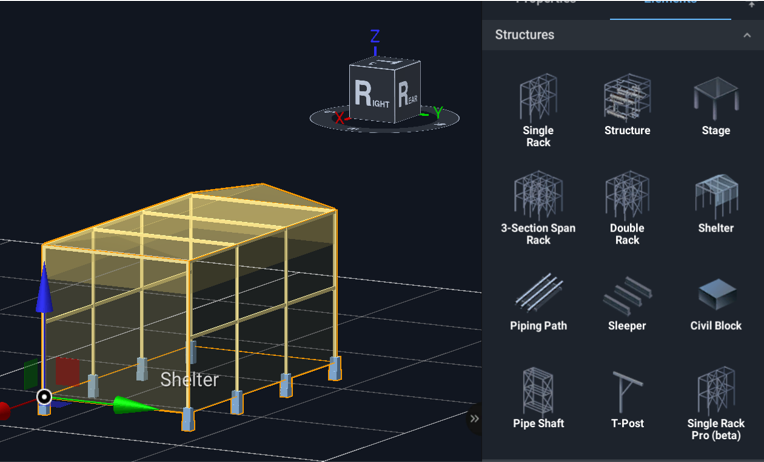

Shelters can be designed using a parametric approach. By adjusting properties such as roof shape and wall dimensions, users can quickly create simplified models.
● Equipment Shelters: Covering pumps, compressors, analyzers, etc.
● Operator Shelters: Providing weather protection near process units.
● Apply by setting the Support Type to “Lug”
● Enables quick modeling of vessels supported by structural members

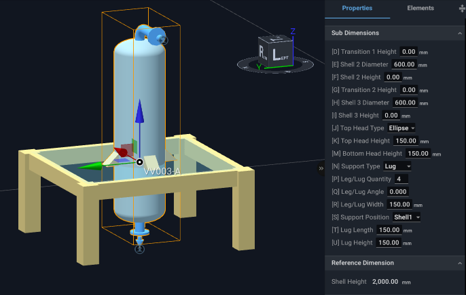

A Lug Support option has been added for Vertical Vessels.
PlantStream conducts version upgrades approximately every three months, providing our customers with a range of new features and improvements.
In addition to the features we’ve highlighted, there are numerous other enhancements and upgrades in this version. If you are interested in the detailed specifics of this update, please don’t hesitate to contact our technical consultants directly by following the link below.
