April 6, 2026
We are proud to announce Version 1.0.33, introducing powerful new capabilities to elevate design efficiency and accuracy.
With Logical Support Automation, piping supports are intelligently calculated based on engineering parameters and seamlessly exported to E3D and S3D.
The new NWD-to-Equipment Import transforms reference models into usable equipment, enabling precise routing through nozzle creation.
Additionally, enhanced secondary cable routing brings structured, tray-based cable management for more realistic and organized designs.
Together, these streamline workflows, reduce manual effort, and enable smarter, more connected engineering.
● Automated Accuracy — Eliminate manual errors.
● Intelligent decision-making based on engineering standards.
● Workflow integration with E3D and S3D.
● Time savings across design and validation phases.

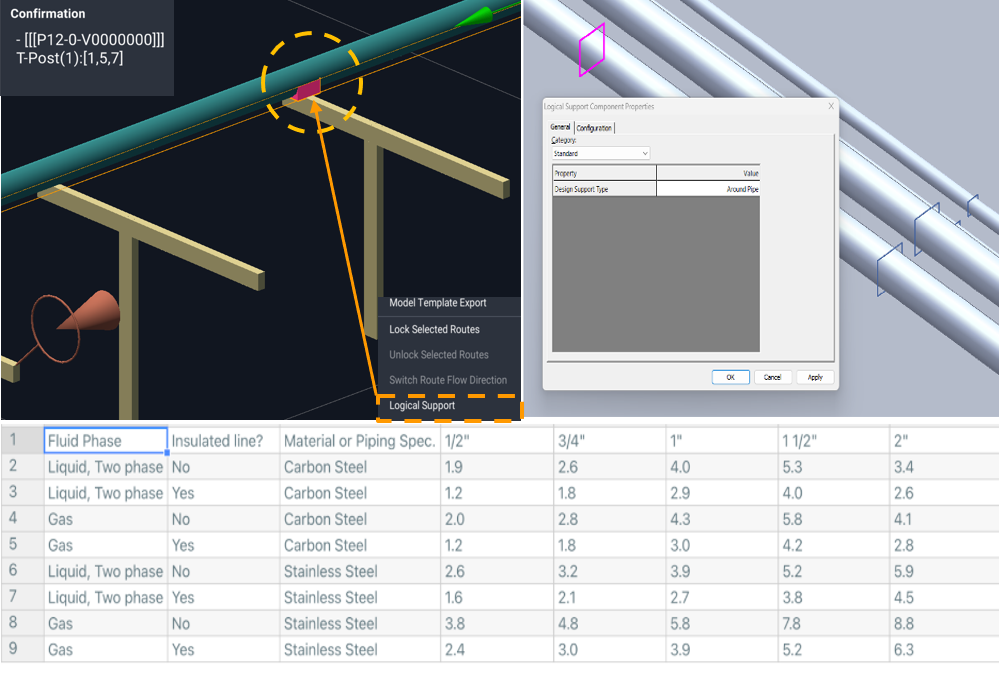

Introducing Intelligent Rack Support Automation — a smarter, faster way to design and validate piping supports.
The Support Span Table, the system intelligently evaluates each beam and identifies where supports are required. It factors in critical parameters such as fluid type, insulation presence, material, and pipe diameter—Export directly as support attachments in E3D＆S3D.

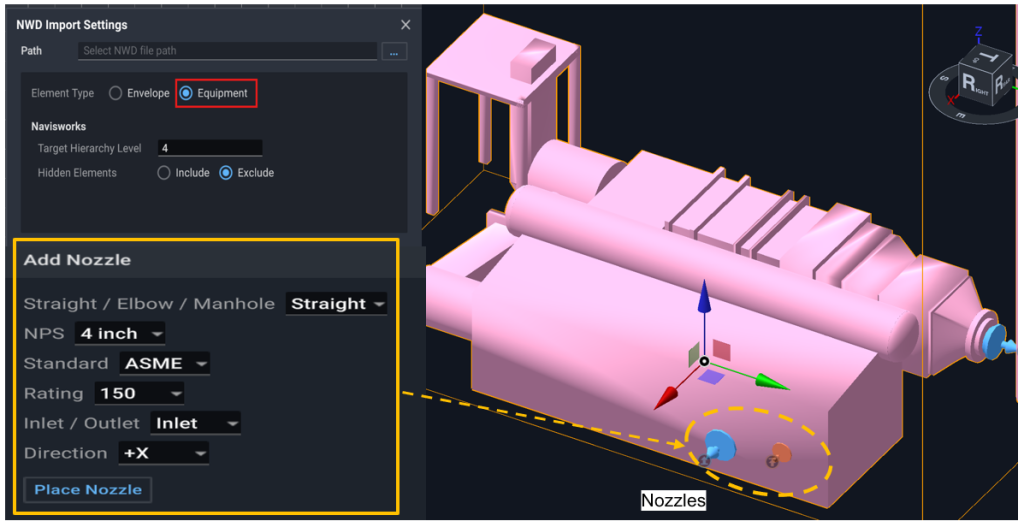

You can now seamlessly import data from NWD files directly as equipment, unlocking a new level of flexibility in your design workflow.
Once imported, these elements behave like native equipment, allowing you to create nozzles effortlessly and use them as precise start and end points for routing.
● Create nozzles for precise routing control.
● Bridge the gap between reference models and intelligent design.

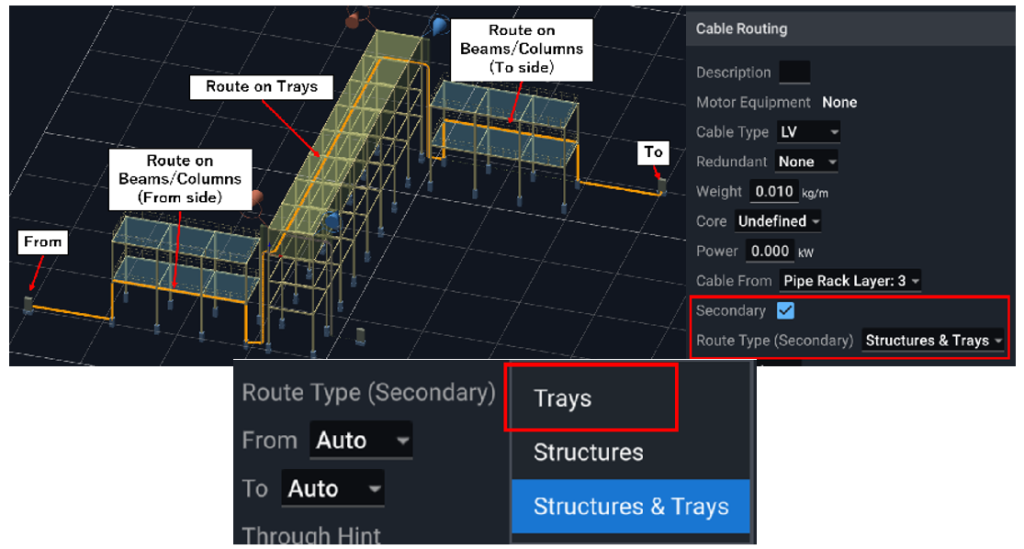

Introducing enhanced routing capabilities in PlantStream — now supporting the routing of secondary cables through cable trays.
This new functionality enables more realistic and structured cable management, allowing designers to route secondary cables efficiently within defined tray systems. By aligning cable routing with actual infrastructure, it improves design accuracy, organization, and overall project clarity.
PlantStream conducts version upgrades approximately every three months, providing our customers with a range of new features and improvements.
In addition to the features we’ve highlighted, there are numerous other enhancements and upgrades in this version. If you are interested in the detailed specifics of this update, please don’t hesitate to contact our technical consultants directly by following the link below.
